Structure testing Equipment

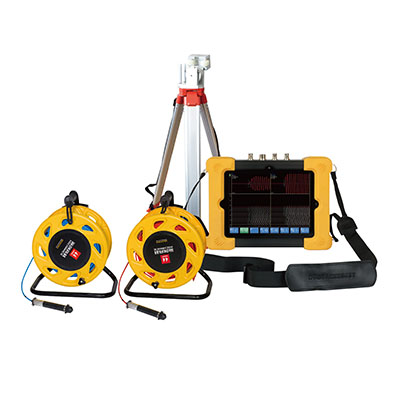

  • HC-U82 NDT Tester Multi-channel Concrete Ultrasonic detector
  • HC-U82 NDT Tester Multi-channel Concrete Ultrasonic detector
HC-U82 NDT Tester Multi-channel Concrete Ultrasonic detectorHC-U82 NDT Tester Multi-channel Concrete Ultrasonic detector

HC-U82 NDT Tester Multi-channel Concrete Ultrasonic detector

  • Product description: Concrete internal defect detection and positioning. Concrete crack depth detection. Concrete crack width detection. Pile Integrity Test
  • INQUIRY

8-inch sun light readable color LCD touch screen that is highly visible in all lighting conditions.
Multifunctional equipment, which can perform detection of concrete strength, crack depth, crack width and defect
Advanced algorithm for automatic first arrival time and amplitude detection
First arrival time, wave-speed, amplitude displayed simultaneously in real-time
First arrival time can be manual corrected to avoid misjudgment
Easily review, retest, delete history data
Performs real-time analysis on site, as well as data transfer with PC reporting software for additional analysis.
meets or exceeds the specifications of JGJ and several other standards


Multifunctional equipment, perform detection of concrete strength, crack depth, crack width and defect ,and Pile Integrity Test with one instrument

Ultrasonic and rebound comprehensive method for testing concrete strength.



SPECIFICATIONS:
Display:8-inch color LCD touch screen(1024*768)
Plane transducer:2
Trigger:Automatic
Sampling interval:0.1μs~2.0μs
Sampling length:1024
Receiver sensitivity:<10μv
Acoustic time range:0~99999μs
Acoustic time accuracy:0.1μs
Amplitude range:0~110dB
Emission voltage:500V, 1000V
Emission pulse width:0.1~100μs
Memory: 2G+4G(USB flash)
Battery: working more than 8 hours
Size: 255*188*63mm
Weight:2.8kg
