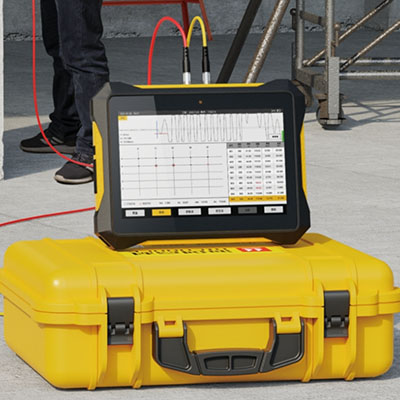

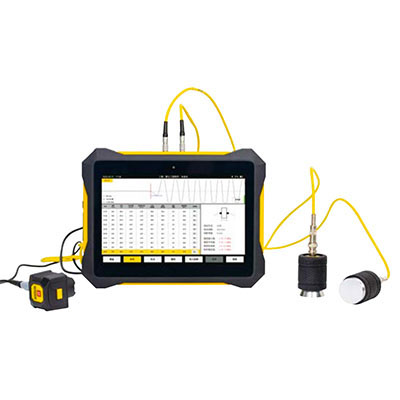

HC-U91 Cncrete Ultrasonic Tester

  • Product description: Concrete internal defect detection and positioning. Concrete crack depth detection. Concrete crack width detection.

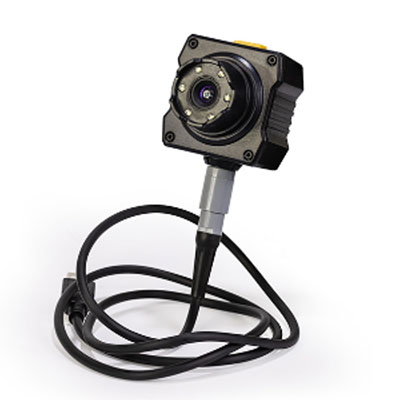

10.1-inch sun light readable color LCD touch screen that is highly visible in all lighting conditions.
Multifunctional equipment, which can perform detection of concrete strength, crack depth, crack width and defect
Advanced algorithm for automatic first arrival time and amplitude detection
First arrival time, wave-speed, amplitude displayed simultaneously in real-time
First arrival time can be manual corrected to avoid misjudgment
Easily review, retest, delete history data
Performs real-time analysis on site, as well as data transfer with PC reporting software for additional analysis.
meets or exceeds the specifications of JGJ and several other standards


Display:10.1inch color LCD touch screen(1024*768)
Plane transducer:2
Sampling interval:0.025μs~2.0μs
Sampling length:1024
Receiver sensitivity:<10μv
Acoustic time range:0~99999μs
Acoustic time accuracy:0.05μs
Amplitude range:0~170dB
Emission voltage:500V, 1000V
Emission pulse width:20μs~20ms
Memory: 2G+4G(USB flash)
Battery: working more than 8 hours
Size: 255*188*63mm
