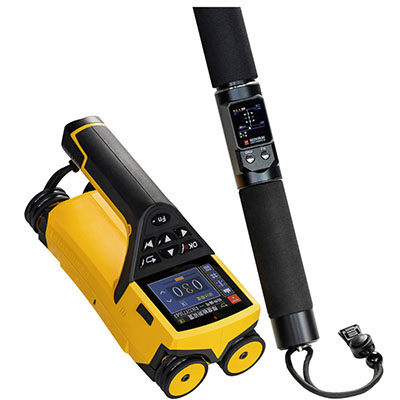

Integrated Concrete Rebar Detector with Synchronous display

  • Product description: integrated rebar detector, a portable nondestructive testing equipment, can be applied for the detection of concrete cover depth as well as the localization, distribution and direction of rebar
  • INQUIRY

Setting range of steel bar diameter (mm): Φ 6~ Φ 50

Range (mm): First range: 1-120; Second range: 5-210

Maximum allowable error of protective layer thickness: ± 1 (mm): 1-80; ± 2 (mm): 81-120; ± 4 (mm): 121~210

Applicable range of diameter estimation (mm): Φ 6~ Φ 50

Maximum error in diameter estimation (specification): ± 1 specification

Screen size: 2.8 inch color LCD screen (320x240 pixels)

Storage quantity: 2500 components

Power supply method: Large capacity lithium battery (2 pieces)

Operation method: capacitive touch screen+buttons

Instrument size: 96mm * 92mm * 211.5mm

Instrument weight: 650g

Real time upload: supported


Synchronous display functional parameters

Screen size: 1.3 inch color LCD screen (240 * 240 pixels)

Transmission distance: 15m

Operation method: buttons

Communication method: Bluetooth

Working hours: greater than 23 hours
