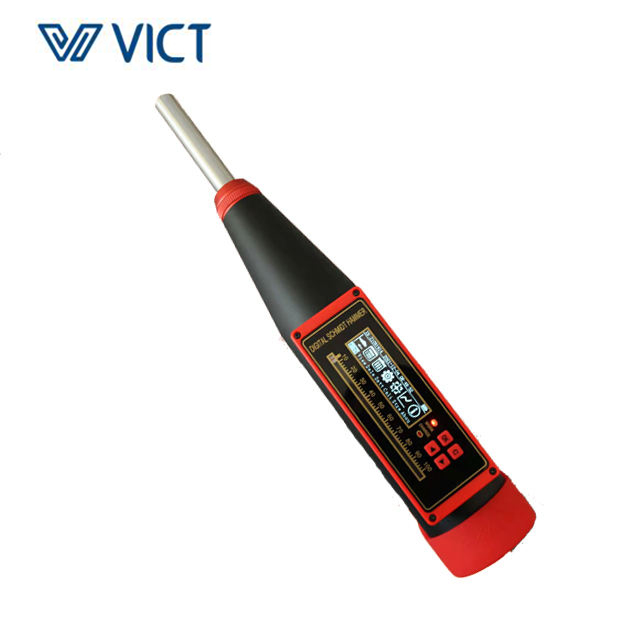

  • Product description: ZC3-T Digital Concrete Schmidt Hammer Concrete rebound tester with Customize LOGO
  • INQUIRY



Accept Customize LOGO !!!


Small size, modular design, easy to replace the mechanical rebound test hammer Built in large capacity rechargeable lithium ion battery, long service life of the test hammer Built in large capacity memory can store 999 standard components, and a single component can set up 99 measuring areas and 159840 measuring point data at most Support break-point continuous test, and data collection is more convenient and humanized Support voice counting, measurement area conversion and component completion voice reminder Support Bluetooth online, expand the use of mobile app connection, and make it more convenient to upload data to the cloud with the cloud server


Specification :

Nominal kinetic energy:2.207J
Stiffness of spring:785 ± 30.0N/m
Pointer length:20.0 ± 0.2mm
Pointer friction:0.65 ± 0.15N
Spherical radius of impact rod:R25 ± 1.0mm
Working length of spring striking tension spring:61.5 ± 0.3mm
Tensile length of spring striking tension spring:75.0 ± 0.3 mm
Rated value of steel anvil:80 ± 2
Consistency of detection indication:≤± 1
Operating temperature:- 4 ℃ ~ + 40 ℃
Communication rate:115200bps
Display:2.08-inch 256x64 (dot matrix) OLED display
Power supply:1800mAh, 3.7V lithium ion battery
Working hours:continuous working ≥ 10 hours
Test range:10-60MPa
