WSY hydraulic static cone penetration testing machine

WSY hydraulic static cone penetration testing machine

WSY hydraulic static detector
static sounding tester
hydraulic penetrometer
geotechnical investigation
Product description: hydraulic static cone penetration tester static sounding penetrometer
INQUIRY

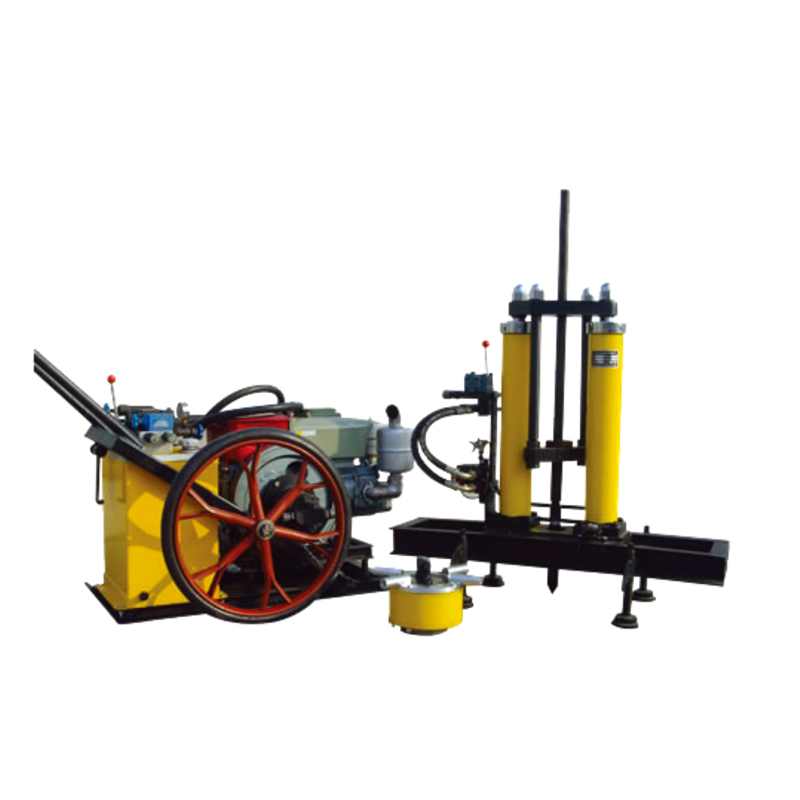

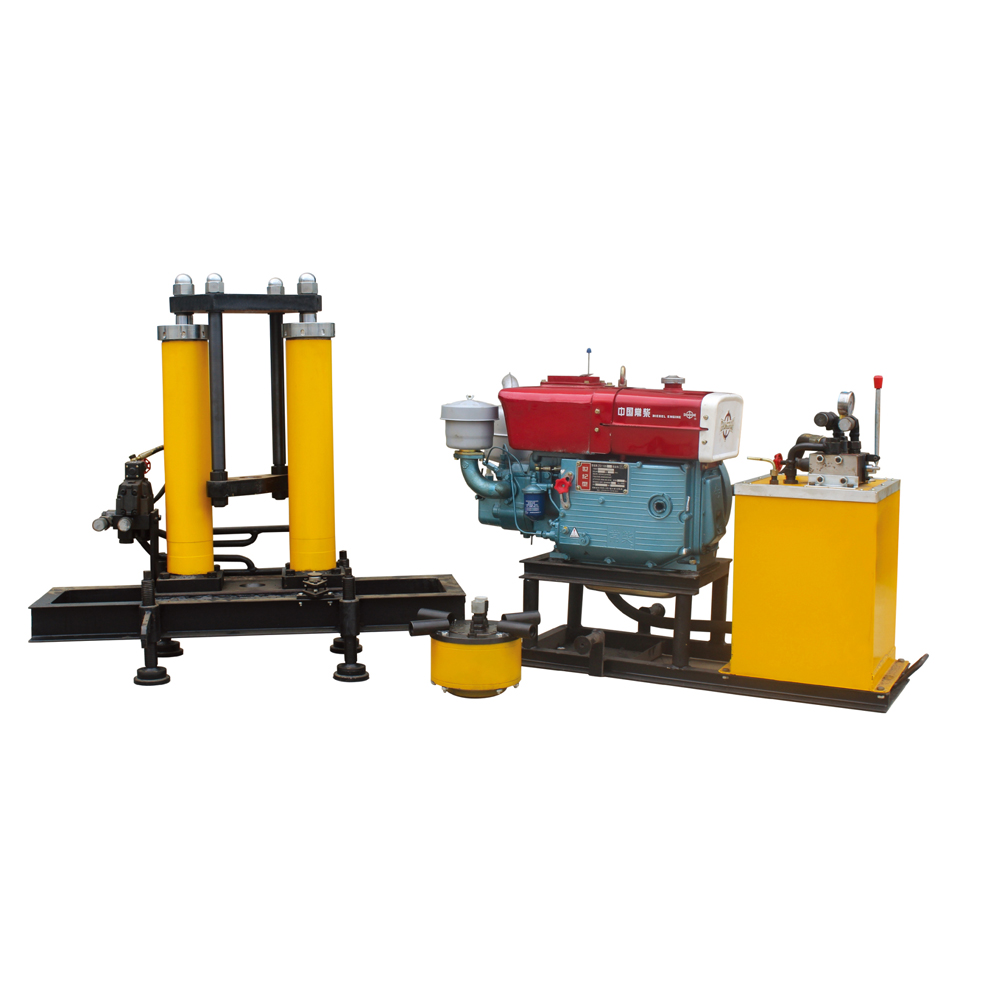

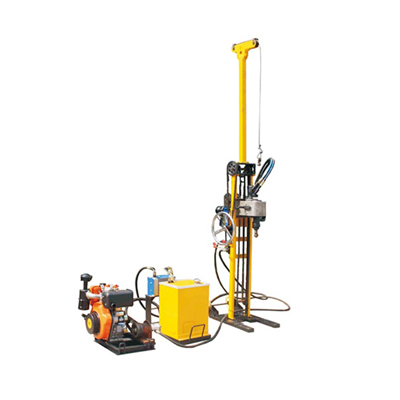

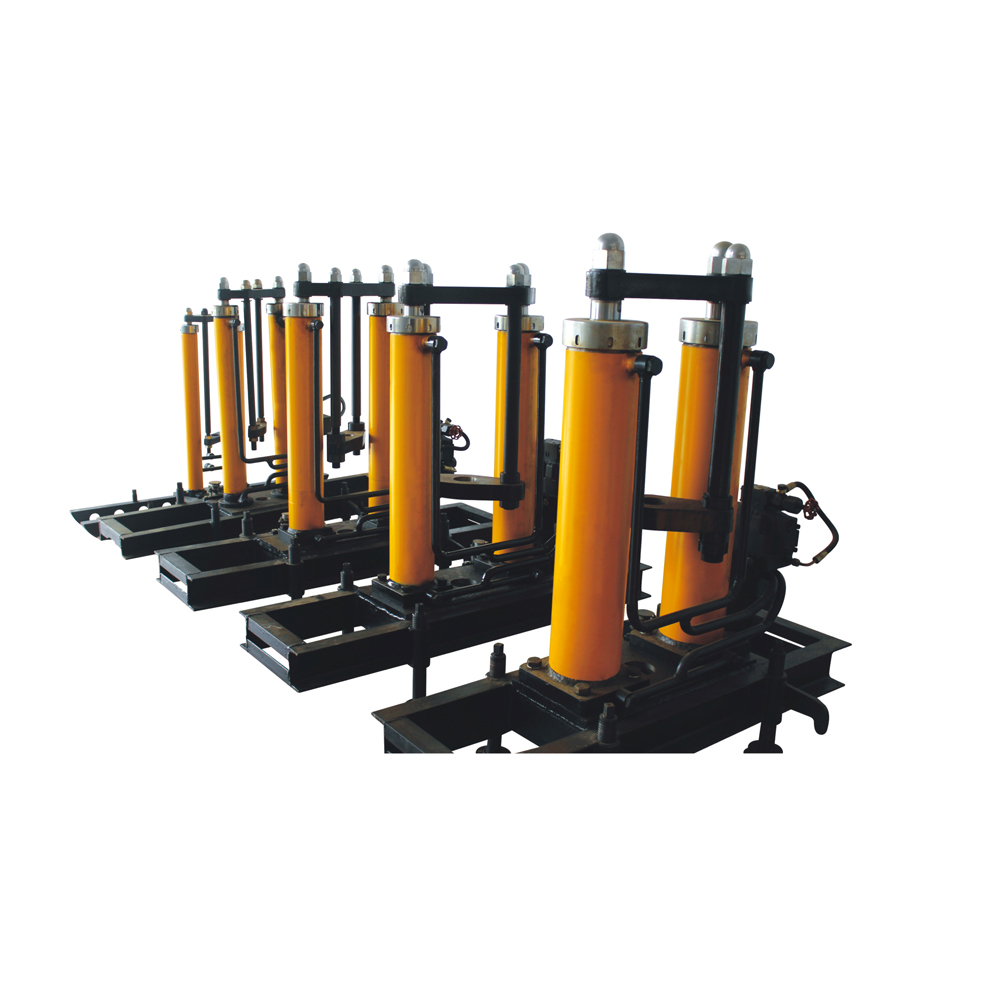

This machine is composed of three parts: penetration car, power car and probe car (including probe, anchor and reactor). During static detection test, the three parts are connected to the whole machine through high-pressure hose of hydraulic transmission system, so it is called bulk static cone detector.
Each independent part is small in size, light in weight and compact in structure. It can be pulled and transported separately by special forklift trucks and can pass freely in narrow lanes of 0.9m wide.

Adopt high-strength plug-in stick, stick firmly, avoid slipping and sticking defect detection rod phenomenon.

Model	WSY-5B	WSY-8B	WSY-10B	WSY-15B	WSY-20B	WSY-25B
Diesel engine	R180	R190	R195	R1100	R1105	R1110
Penetration force	50KN	80KN	100KN	150KN	200KN	250KN
Pull force	60KN	100KN	120KN	180KN	240KN	280KN
Penetration speed	1.2 ± 0.3m/min
Pull speed	1.03-2.06m/min			0.92-1.84m/min
Cylinder stroke	600mm
Oil cylinder diameter	D60mm	D70mm	D90mm	D100mm	D110mm	D125mm
Probe diameter(mm)	Ф28	Ф28. Ф33	Ф33. Ф36	Ф36. Ф40	Ф36. Ф40	Ф40. Ф42
