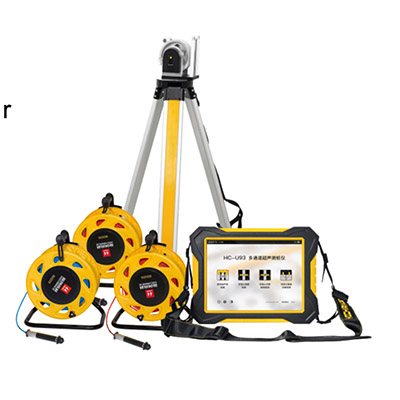

HC-U93 multi-channel ultrasonic pile tester

HC-U93 multi-channel ultrasonic pile tester

  • Product description: 1. Acoustic transmission method for pile integrity testing 2. Integrity testing of underground continuous walls 3. Concrete compressive strength testing using ultrasonic rebound comprehensive method
  • INQUIRY

Soundwave transmission method for pile integrity testing

Integrity testing of underground continuous walls

Concrete compressive strength testing using ultrasonic rebound comprehensive method

Concrete defect detection and localization

Concrete crack depth detection

Geological survey, mechanical performance testing of non-metallic materials such as rock mass and concrete


Main control form: A9 quad core embedded processor, 1GHz main frequency, 1GB memory

Screen size: 12.1 inches

Operation mode: touch screen

Storage mode: 32G electronic hard drive

Depth counting method: automatic counting

Sampling interval: 0.025us~2000us, multiple options available

Record length: 0.5-4k

Sound time measurement range: 0~4096000 μ S

Emission voltage: adjustable in four gears: 125, 250, 500, and 1000

Sampling length: adjustable in three levels: 512, 1024, and 2048

Gain range: 0~170dB

Gain accuracy: 0.5dB

Number of channels: three channels

One lift test profile: 3

Maximum lifting speed: 60m/min

Counting method: bidirectional counting

Emission pulse width: 0.1-100us

Band width: 1-500kHz

Sound amplitude accuracy: ≤ 3%

Sound time accuracy: ≤ 0.5%

Receiving sensitivity: ≤ 10 μ V

Interchannel crosstalk: ≤ 1/400

Data export: USB

Data upload mode: WIFI

Working temperature: -20 ℃~60 ℃

Power supply mode: detachable lithium battery, operating for more than 8 hours

Measurement point spacing: 5~25cm

Minimum measuring point distance: 5cm

Radial transducer line length: 100m (other specifications can be customized)

External dimensions: 340 * 256 * 58mm

Weight: 3.5kg
