  • HC-U92 multifunctional concrete ultrasonic detector

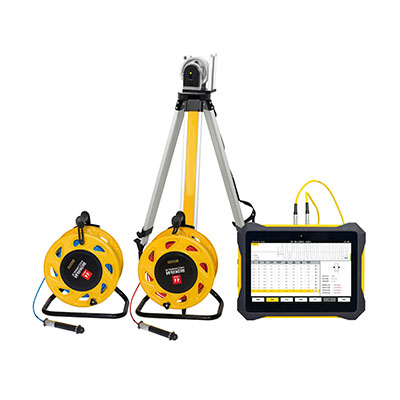

HC-U92 multifunctional concrete ultrasonic detector

HC-U92 multifunctional concrete ultrasonic detector

  • Product description: 1.Soundwave transmission method for pile integrity testing; 2.Ultrasonic rebound comprehensive method for measuring strength, 3.measuring defect, 4.measuring depth, 5.measuring width
  • INQUIRY

Soundwave transmission method for pile integrity testing;

Integrity testing of underground continuous walls;

Concrete compressive strength testing using ultrasonic rebound comprehensive method;

Internal defect detection and positioning of concrete crack depth detection;

Geological exploration, mechanical performance testing of non-metallic materials such as rock mass and concrete.


Main control unit: A8 professional processor

Number of channels: dual channels

Display mode: 10.1-inch color LCD screen (1280x800)

Test speed: 1m/s (0.2m per point)

Trigger mode: automatic trigger

Sampling interval: 0.025μs ~ 2000μs, multiple levels optional

Sampling length: 512 points ~ 2048 points, multiple options available

Receiving sensitivity: ≤10μV

Sound time measurement range: 0 ~ 4096000μs

Sound time reading accuracy: 0.025μs

Amplitude reading range: 0 ~ 170dB

Transmission voltage: 125V, 250V, 500V, 1000V multiple levels optional

Emission pulse width: 0.1μs ~ 100μs

Storage capacity: 16G

Transfer method: dedicated U disk

Charging power supply: AC100~240 V, 50/60Hz, output 12.6V DC, 3.0A

Host volume: 283×216×41 (mm)

Host weight: 1.9kg

Working temperature: -20~+60℃

Depth measurement range: 5~500㎜

Width measurement range: 0.01~10㎜
