Structure testing Equipment

  • HC-DT58 two channel Low Strain Pile Integrity Tester
  • HC-DT58 two channel Low Strain Pile Integrity Tester
  • HC-DT58 two channel Low Strain Pile Integrity Tester
HC-DT58 two channel Low Strain Pile Integrity TesterHC-DT58 two channel Low Strain Pile Integrity TesterHC-DT58 two channel Low Strain Pile Integrity Tester

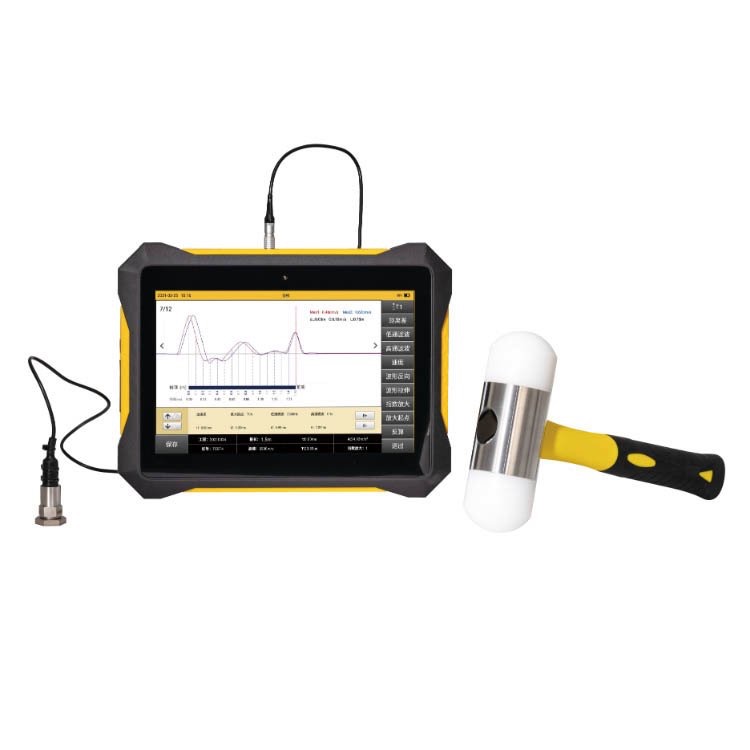

HC-DT58 two channel Low Strain Pile Integrity Tester

  • Low Strain Pile Integrity Tester
  • Pile Integrity Tester
  • Wireless PIT with two channel
  • Pile Echo Integrity Test Equipment Tester
  • Product description:
  • INQUIRY

Display:

10.1-inch color LCD screen resolution 1280x800

Storage method:

16G

Dump method:

U disk transfer, WIFI upload to the cloud

A/D sampling precision:

24 bits

Sampling frequency:

24kHz, 36kHz, 48kHz, 72kHz four optional

Sampling length:

 1024, 2048, 4096 three options

Sensor Type:

Acceleration Sensor

Sensor sensitivity:

100mV/g

Sensor capacity:

50g

 Frequency range:

0.5-9000Hz

 Resolution:

0.0002g

 Shock resistance:

1500g

 Instrument gain:

1, 2, 4, 8 times adjustable

 Power supply mode:

removable lithium battery

Working time:

>8 hours

Wireless connection method:

WiFi, Bluetooth

Working environment temperature:

-10~+50(℃)

Working environment humidity:

≤90%RH

Number of channels:

2 channels

Dimensions:

283×216×41 (mm)

Weight:

1.9kg
