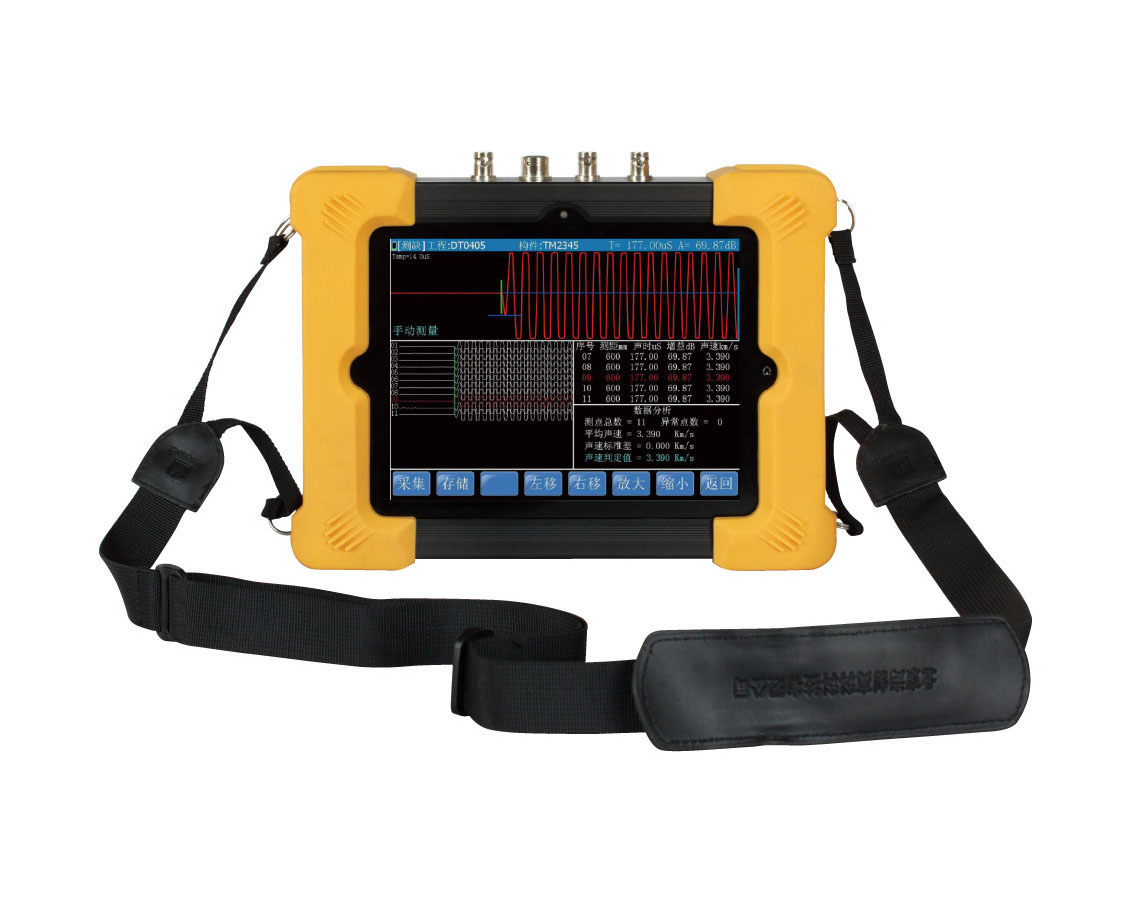

HC-U81 Concrete ultrasonic detector

  • Concrete ultrasonic detector
  • Product description: Concrete crack depth / width detection. Concrete internal defect detection and positioning. Ultrasonic and rebound comprehensive method for testing concrete strength.
  • INQUIRY

Multifunctional equipment, perform detection of concrete strength, crack depth, crack width and defect with one instrument

SPECIFICATIONS Display:8-inch color LCD touch screen(1024*768)
Plane transducer:2
Trigger:Automatic
Sampling interval:0.1μs~2.0μs
Sampling length:1024
Receiver sensitivity:<10μv
Acoustic time range:0~99999μs
Acoustic time accuracy:0.1μs
Amplitude range:0~110dB
Emission voltage:500V, 1000V
Emission pulse width:0.1~100μs
Memory: 2G+4G(USB flash)
Battery: working more than 8 hours

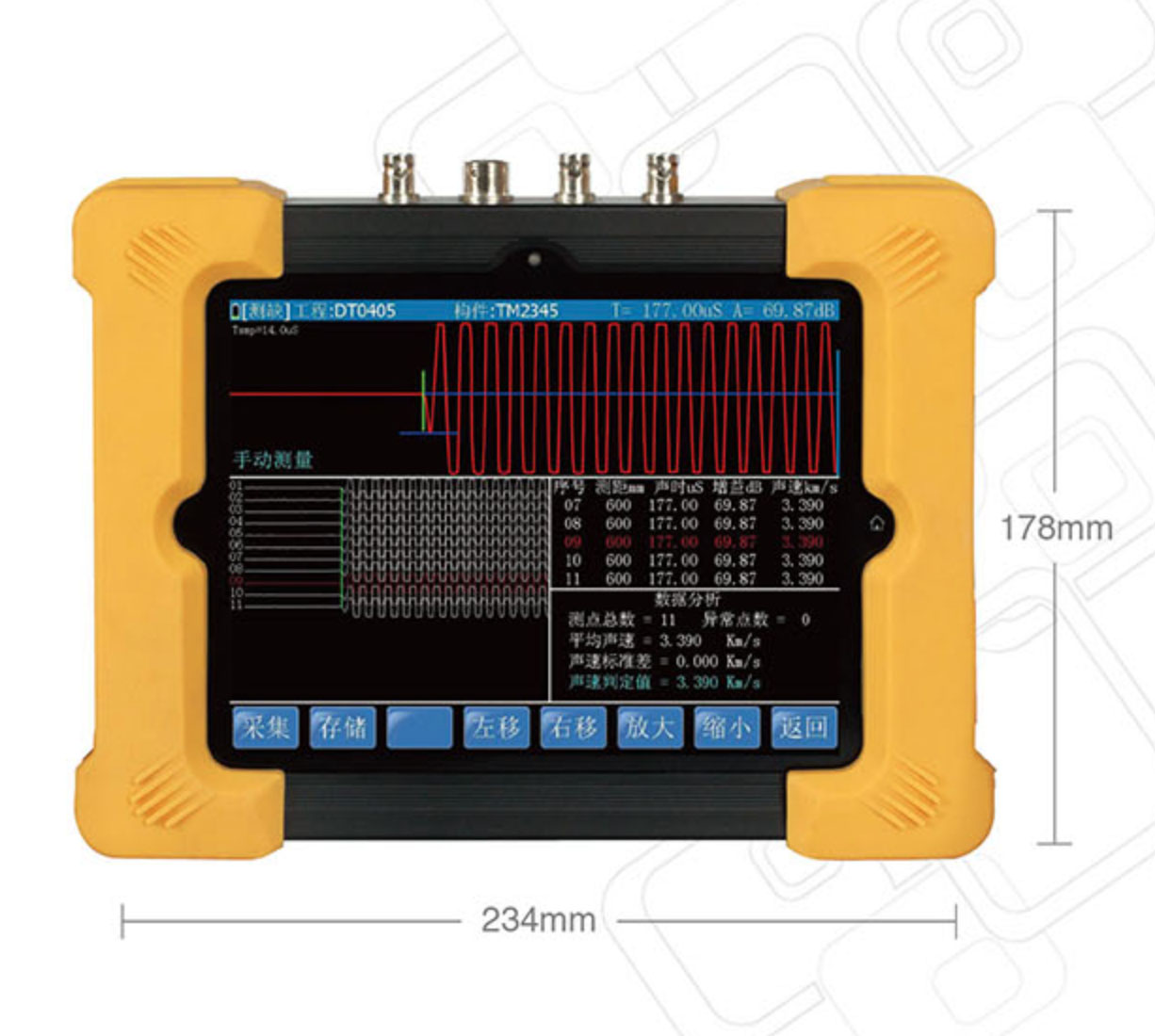

Size: 255*188*63mm
Weight:2.8kg
