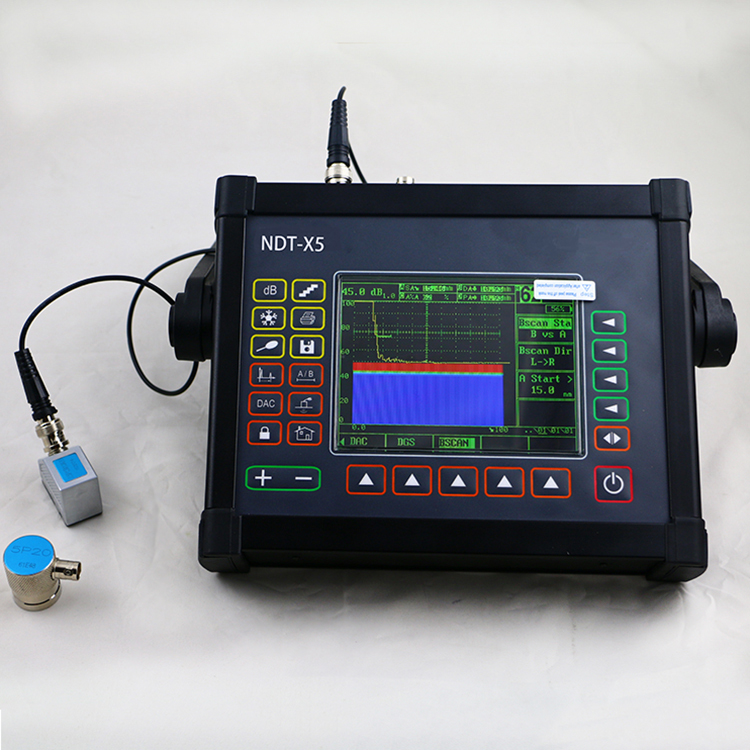

NDT-X5 Ultrasonic Flaw Detector

NDT-X5 Ultrasonic Flaw Detector

Measuring range
1.0-12000mm
Resolution
0.01mm(less than 100mm)
1mm (more than 100mm)
Velocity
500-20000m/s  20fixed velocities
Delay
-20-3400us  resolution :0.1us
Probe Delay
0-99us resolution:0.01us
Auto calibration
Velocity calibration & Probe Delay Calibration
Linear Error
Horizontal error less than 0.1%  Vertical error:less than 3%
Dynamic Range
more than 36dB
Sensitivity
more than 64dB
Size
240*180*50mm
Weight
1.9Kg (including battery )
Working Environment
Temperature :-20℃--70℃
Humidity:5%-90%
Dive pulse
Negative spikes ,high energy /low option
