Optical Interference Methane Detector

  • explosion-proof
  • CJG-10
  • CJG-100
  • CJG-10B
  • Product description: CJG-10B Optical Interference Methane Detector CJG-10 Optical Interference Methane Detector CJG-100 Optical Interference Methane Detector
  • INQUIRY

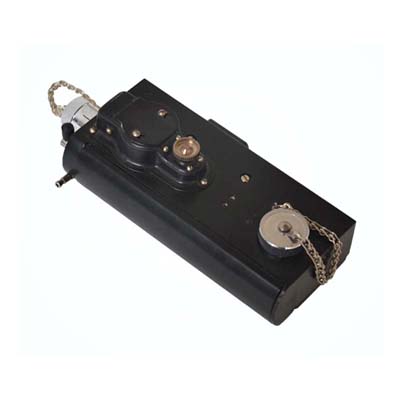

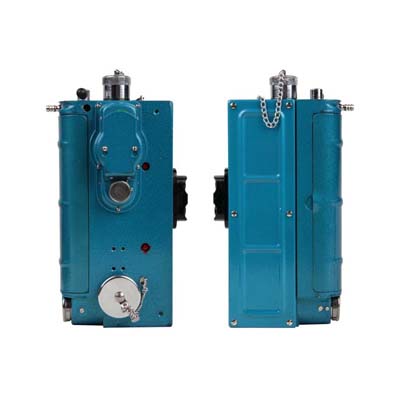

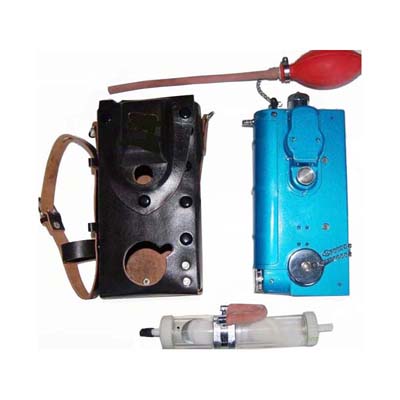

Optical interference type methane detector is using the optical interference principle,portable instrument for measuring concentration of methane, carbon dioxide and other gases,It has the characteristics of high precision, simple operation, easy to use and so on.

The machine is mainly used for measuring the concentration of methane in the working environment of the flammable, explosive and combustible gas mixture.


Technical Parameter

Model

CJG10

CJG100

Measuring range(%CH4)

0~10

0~100

Eyepiece reticle min division value(% CH4)

0.5

5

Micrometer dial Division Range(%CH4)

0~1

0~10

Micrometer dial min division value(%CH4)

0.02

0.2

Ex-mark

Exib

ExibⅠMb

Light source

2.5V/0.3A Light bulb(Electric bulb)

Power Supply

2 pieces 1. 5V/R20 zinc manganese battery team,

Rated voltage Ue: 3. 0V,

Max output voltage Uo: 3. 14V,

Max output current Io: 4.5A

Outline dimension

218*123*65mm

Weight

1.8KG

Use environment

working temperature:(0~40) ℃;

relative humidity:≤90%,atmospheric pressure:(86~110) kPa;
