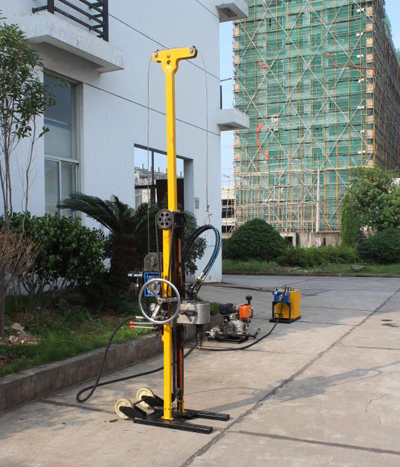

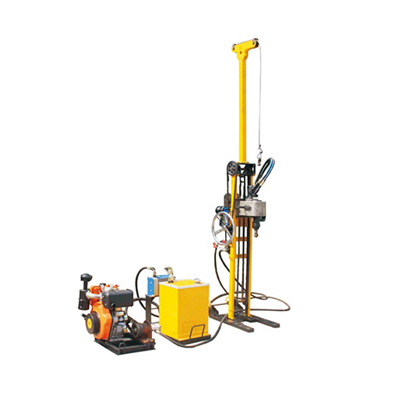

  • Product description: QYZ-30 light and small hydraulic sampling rig 30 meters hydraulic mining drilling rig
  • INQUIRY

In the mountainous area, the end mining area, the remote “difficult to enter” area and the multi-point moving roadbed and high-voltage lines scattered in the hole position, the company’s engineers and technicians carefully designed the layout based on the first-generation QYZ15 small drilling rig. The QYZ30 light and small drilling rig, which is reasonable, light, easy to handle, modular, hydraulically driven and adaptable to the drilling process, will bring you more benefits with less effort.

The main parameters

Rig model:QYZ30

Power(kw):10

Drilling rated depth(m):30

Hydraulic system pressure(MPa):9

Drilling aperture(mm): Ø73(Ø56- Ø127)

Power head torque(N.M)180

Drill pipe diameter(mm):Ø33(Superior grade alloy steel seamless pipe)

Power head speed(r/mim):(high speed)650

(Medium speed)300

(Low speed)130

Winch lifting force(kg):1000
Working size(mm):

Including the height of the fork     910×480×3180(long×width×high)

No fork height     910×480×1800(long×width×high)
Machine quality(kg):300(Includes mainframe, power, water pump, hydraulic and other systems, without tubes, rods, drills and accessories)
