  • ZHS1201 explosion-proof camera

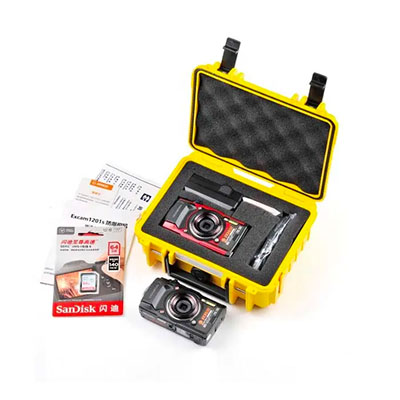

ZHS1201 explosion-proof camera

ZHS1201 explosion-proof camera

<table class="all magic-6" style="margin:0px;padding:0px;font-size:14px;font-family:OpenSans, " width:750px;color:#333333;background-color:#ffffff;"="">

Product Name

explosion-proof digital camera for chemical factory

Brand Name

BTR (BAi Te Er)


Explosion-proof Certification, Patent Certification


Ex.Mark Ex ib IIC T4 Gb/Ex ib IIIC T130C Db
l Screen Display:3’’LCD (1040K,3:2) (non-touch)
Effective pixels:12 million pixels, total pixels: about 12.7 million pixels
950mAh safe battery capacity
1cm (0.4") minimum focusing distance
l Zoom 4x optical zoom +2x digital zoom
l IRIS -f/2.0 (wide Angle) -f/4.9 (telephoto)
l ISO aerial speed:100-12800 optional
12MP, 1/2.33" BSI-CMOS sensor
l focal length:4.5mm -18.0mm (25mm - 100mm)
size and weight: 113 mm×66 mm×32.4mm 253g
Waterproof to 15m (45ft), shockproof from 2.1m (7ft), crushproof to 100kgf
(220lbf), freezeproof to - 10°C (14°F), dustproof
Connect port: HDMI;Wi-Fi
Pro Capture mode saves photos before and after the shutter release is pressed,
to help you capture the right moment
