Features:
(1) The oil circuit is completely built in and the appearance is simpler. It can avoid the reliable drop and easy damage of the instrument due to the external pipe.

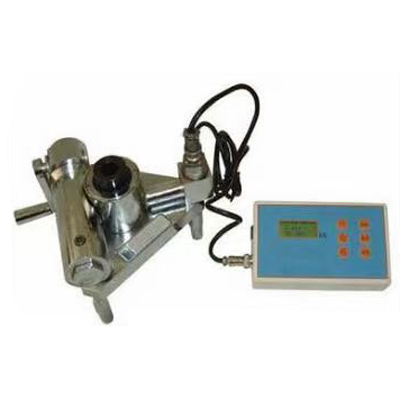

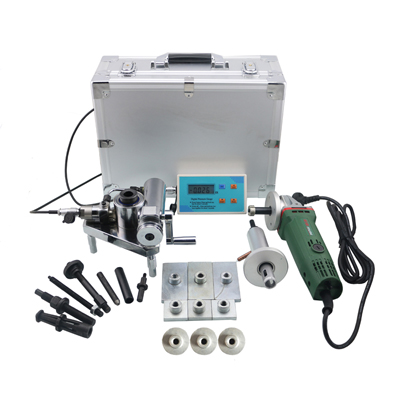

A new generation of multi-function strength detectors for the current market
(2) Adopting the latest Chinese menu-style intelligent digital pressure gauge developed by our company, with data storage, query and peak hold
Function, software calibration, no need to open the pressure gauge, when applying force to the specified pressure, just click "set
The “key” button can be completed, which is the only on-site portable multi-function intensity detector with this function.
Greatly convenient for user calibration and use, very popular.
(3) Adopting the principle of “post-loading and extraction method”, which is the standard test method for testing concrete compressive strength in China.
"Technical Regulations for Testing Concrete Strength after Post-Extraction Method" (CE CS69:94), when concrete has a certain
When it is strong, it can be tested at any time.
(4) Comply with the "Testing Standard for Bonding Strength of Building Finishing Tiles" (JGJ110-97) and "Construction of Exterior Wall Finishing Bricks"
Acceptance Procedures (JGJ126-2000)
(5) The strength curve has been established in many places. The test method has been adopted by various quality inspection units and laboratories nationwide.
widely used
(6) Each instrument is marked by the legal unit of measurement before leaving the factory, and is used directly. The unit of pressure gauge display is kN
The main technical parameters:
Maximum pullout force 40kN
Cylinder stroke 10 mm
Minimum division value 0.01kN
Error less than 2%
Main unit weight 4.2 kg
Power supply nickel-metal hydride rechargeable battery
