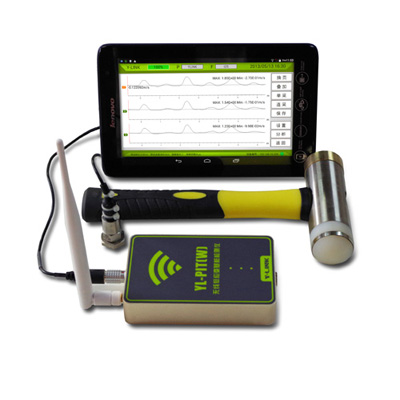

Ultrasonic Pile Integrity Tester

Testing Equipment

Application

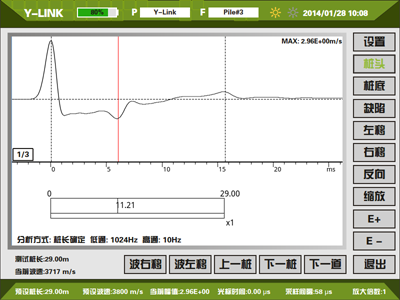

Pile integrity test by low strain reflected wave method.

Features

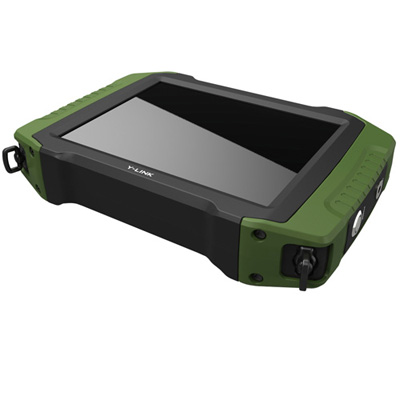

1. 8.4”TFT HD touch screen. High brightness for any lighting condition..

2. Power-efficient hardware platform for excellent battery performance.

3. The operation wizard makes the test easier and more efficient.

4. High accuracy on sample collection, high signal-to-noise ratio.

5. Unique multi-function port for charging and data transfer.

6. Ergonomic and light-weight design improves holding comfort.

Model	YL-PIT
Control unit	Low power embedded industrial processor
Display	8.4 “ TFT LCD (resolution:800x 600)
Storage capacity	8G
Power mode	Rechargeable lithium battery≥8 hours
Operation Mode	Touch screen
Data transfer mode	USB2.0
Sampling interval	5μs ～ 200μs
Record size	1024 points
Sampling resolution	24-bit A/D
Signal bandwidth	5Hz~12kHz
System noise	＜20μv
Dynamic range	≥100dB
Channel	1
Sensor	Piezoelectric accelerometer/Speedometer
Operation temperature	-20℃ ～ +55℃
Dimension	266 x 180 x 50 mm
Weight	About 1.9 kg
