  • Product description: BM-III Pendulum Skid resistance testing machine
  • INQUIRY

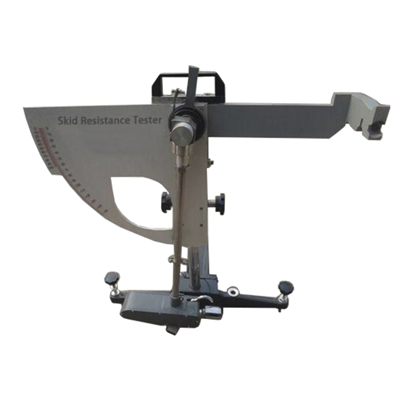

The Pendulum Skid Tester measures the frictional resistance between a rubber slider mounted on the end of a pendulum arm and the test surface. This provides highway engineers with a routine method of checking the resistance of wet and dry surfaces to slipping and skidding, both in the lab and on site. It is based on the Izod principle: a pendulum rotates

about a spindle attached to a vertical pillar. At the end of the tubular arm a head of known mass is fitted with a rubber slider.

The pendulum is released from a horizontal position so that it strikes the sample surface with a constant velocity. The distance travelled by the head after striking the sample is determined by the friction of the sample surface. A reading of Skid Resistance is obtained.

Features

Designed for laboratory and in situ road surface testing

Dispatched calibrated to EN1097-8

Low friction arm, and lightweight pointer

Comes with integral “F” scale for use with small slider set for 76mm slide length. (PSV test)

Repeatable and reproducible

Supplied with robust carrying case


Applications

Road surface testing

Testing of new road surface materials under development

Testing of aggregates in the PSV (polished stone value) test

Testing of floors and pedestrian walkways

Flooring materials product development

Accident investigations, both traffic and pedestrian

Litigation investigations


Technical Parameters

a) Pendulum weight: 1500g

b) Distance of center of pendulum gravity 410mm

c) Forward Static Pressure From Rubber Sheet To Pavement2263g

d) Oscillation during free falling of the pendulum from slope 5o is no less than 70 times.

e) Distance between oscillation center to outer edge of rubber sheet510mm

f) Package Size40 x 75 x 75cm,weight17kg
